UI Customization ​

The folder of “ComPDFKit_Tools” includes the UI components to help conveniently integrate ComPDFKit PDF SDK. We have also built five standalone function programs, namely Viewer, Annotations, ContentEditor, Forms, DocsEditor, and Digital Signatures, using this UI component library. Additionally, we have developed a program called PDFViewer that integrates all the above-mentioned example features for reference.

In this section, we will introduce how to use it from the following parts:

1. Overview of "ComPDFKit_Tools" Folder: Show the folder structure and the main features included in the corresponding component.
2. UI Components: Introduce the UI components and how to use them easily and fast.
3. How to Use the CPDFListView Class: Contain the details to use CPDFListView.
4. Learn More: Show the special code structure and features for programming platforms.

How to Use the Default UI of ComPDFKit PDF SDK to Build iOS Applications:

The "ComPDFKit_Tools" in ComPDFKit PDF SDK is a UI component library of the sample project, which includes the basic UI of the application. To make a custom iOS application UI with the default UI of ComPDFKit PDF SDK, you can find the corresponding "ComPDFKit_Tools" file in the*** "Lib/Tools/Objective-C/"*** or "Lib/Tools/Swift/" (Choose the right one according to path according to your development language), and import it into your project.

2.5.1 Overview of "ComPDFKit_Tools" Folder ​

There are nine modules in "ComPDFKit_Tools": "Common", "Viewer", "Annotations", "ContentEditor", "Forms", and "DocsEditor", "Digital Signatures", "Security", and "Watermark". Each includes the code and UI components for corresponding PDF features, like the following table, to process PDFs.

UI Components ​

This section mainly introduces the connection between the UI components and API configuration of "ComPDFKit_Tools", which can not only help you quickly get started with the default UI but also help you view the associated API configuration. These UI components could be used and modified to create your customize UI.

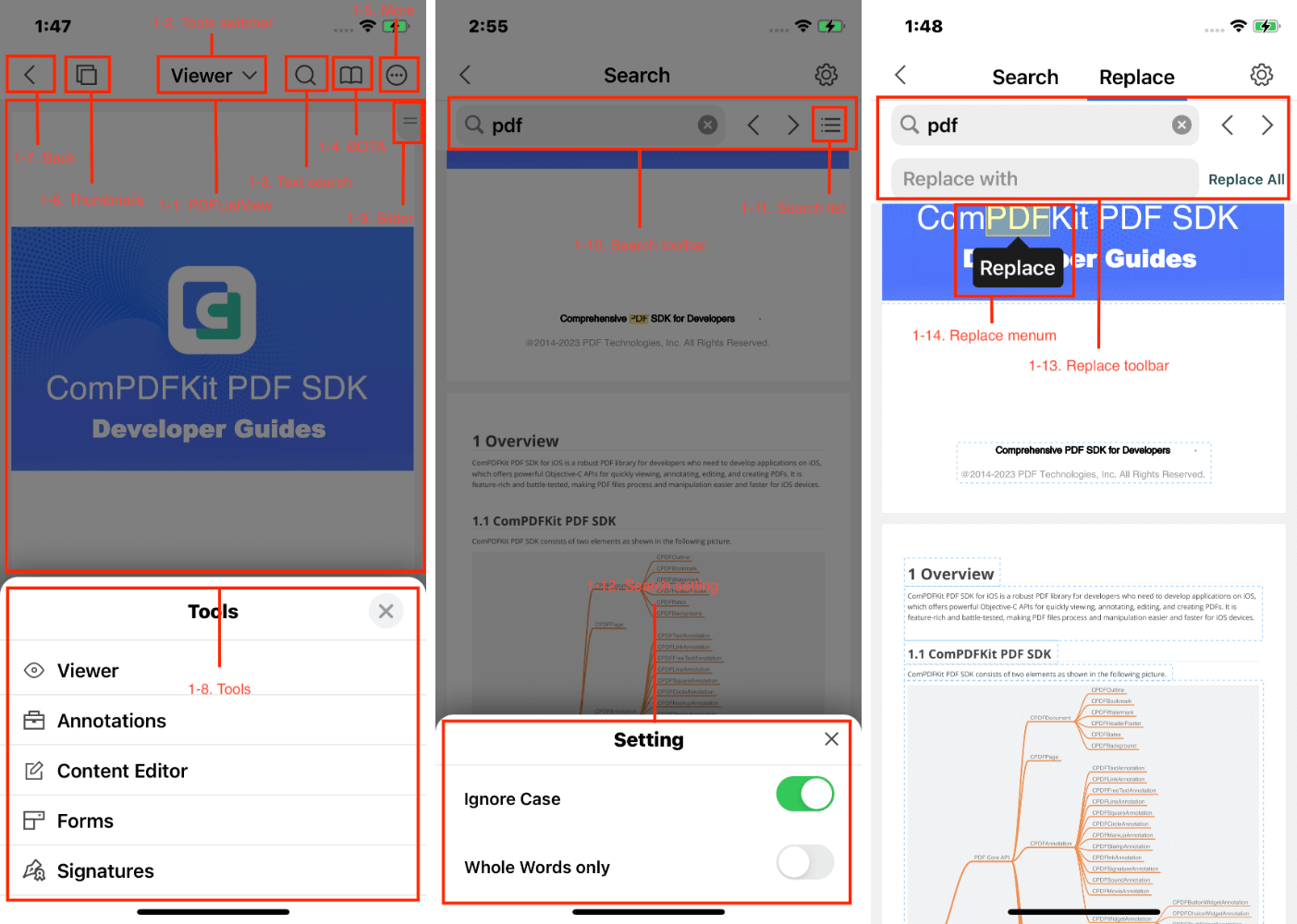

Part 1:

The left image above shows the main UI components associated with the Viewer module API, which are also the basic UI components of "ComPDFKit_Tools". The right image above shows the main UI components associated with the API for Text search. The following shows the details of the connection between UI components and APIs.

Here is the method to initialize the Tools switcher (Number 2) below:

// CPDFToolsViewController: Initialize an array of CToolModel type: toolArrays
// toolArrays: Save the type and number of Tools display mode
let toolsVc = CPDFToolsViewController(customizeWithToolArrays: [NSNumber(value: CPDFToolFunctionTypeState.viewer.rawValue),
                                                                        NSNumber(value: CPDFToolFunctionTypeState.edit.rawValue),
                                                                        NSNumber(value: CPDFToolFunctionTypeState.annotation.rawValue),
                                                                        NSNumber(value: CPDFToolFunctionTypeState.form.rawValue)])

// CPDFToolsViewController: Initialize an array of CToolModel type: toolArrays
// toolArrays: Save the type and number of Tools display mode
CPDFToolsViewController * toolsVc = [[CPDFToolsViewController alloc] initCustomizeWithToolArrays:@[@(CToolModelViewer),@(CToolModelEdit),@(CToolModelAnnotation),@(CToolModelForm)]];

Here is the method to initialize the BOTA (Number 4) below:

// CPDFBOTAViewController: Initialize a CPDFListview object pdfView and an array of CPDFBOTATypeState type navArrays
// navArrays: Save the displaying list types and number of BOTA
  let navArrays: [CPDFBOTATypeState] = [.CPDFBOTATypeStateOutline,
                                        .CPDFBOTATypeStateBookmark,
                                        .CPDFBOTATypeStateAnnotation]
        if(self.pdfListView != nil) {
            let botaViewController = CPDFBOTAViewController(customizeWith: self.pdfListView!, navArrays: navArrays)
        }

// CPDFBOTAViewController: Initialize a CPDFListview object pdfView and an array of CPDFBOTATypeState type navArrays
// navArrays: Save the displaying list types and number of BOTA
CPDFBOTAViewController *botaVC = [[CPDFBOTAViewController alloc] initCustomizeWithPDFView:pdfListView navArrays:@[@(CPDFBOTATypeStateOutline),@(CPDFBOTATypeStateBookmark),@(CPDFBOTATypeStateAnnotation)]];

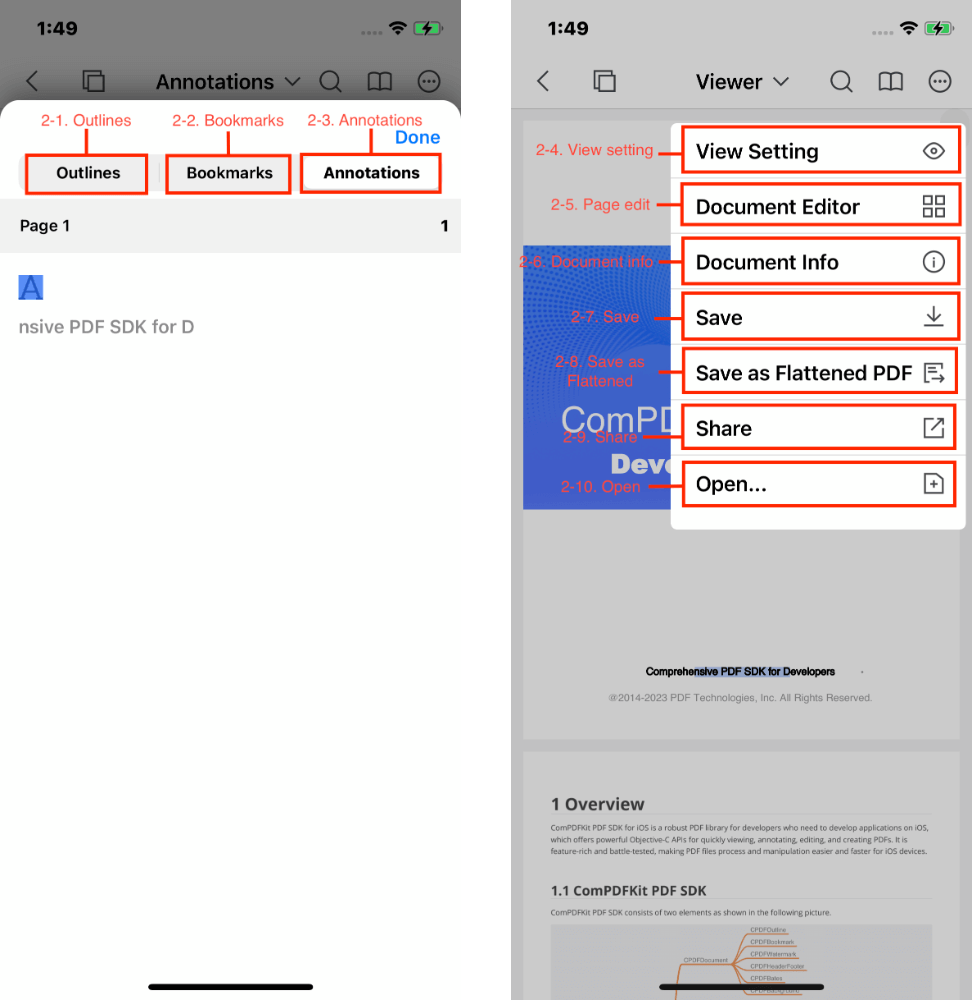

Part 2:

The left image above shows the main UI components associated with the CPDFBOTAViewController API. The right image above shows the main UI components associated with the CPDFPopMenuView API. See the following details of the connection between UI components and APIs.

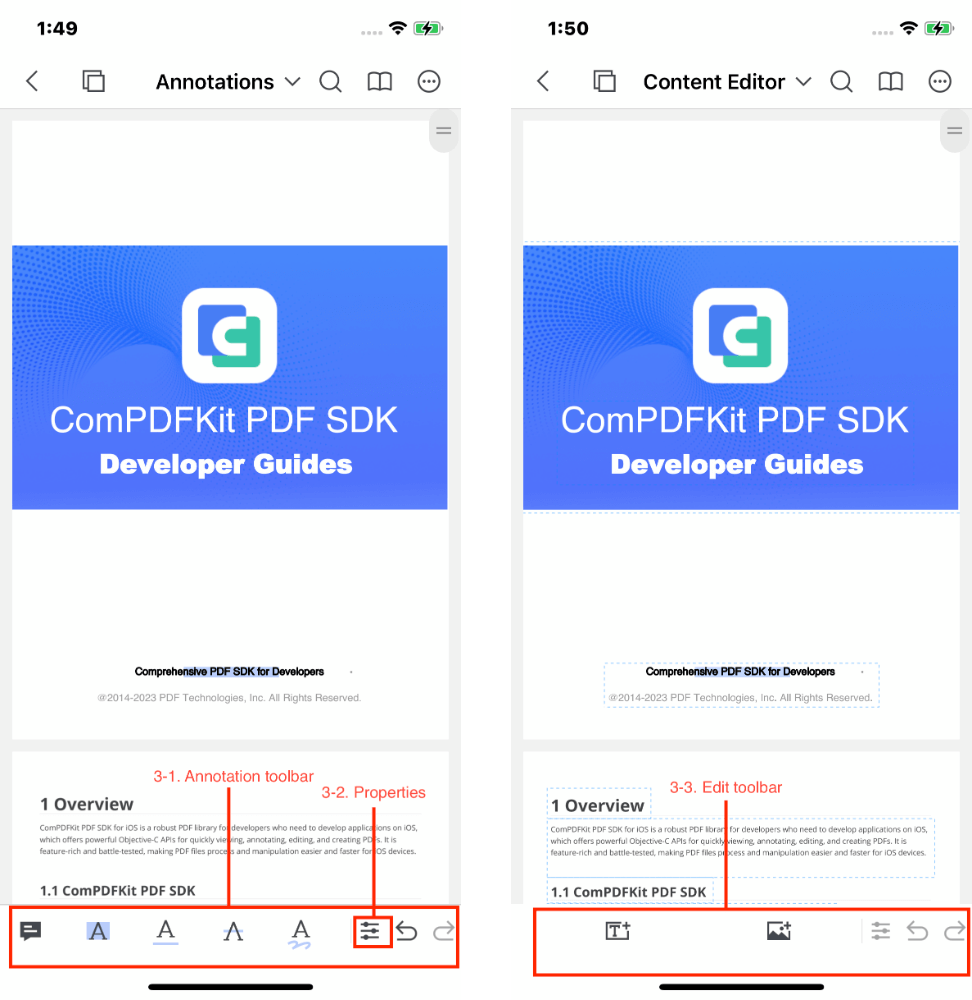

Part 3:

The left image above shows the main UI components associated with the API of Annotations. The right image above shows the main UI components associated with the ContentEditor API. See the following details of the connection between UI components and APIs.

Here is the method to initialize the CAnnotationManage (Number 19) below:

// Initialize the CAnnotationManage object
  var annotationManage = CAnnotationManage.init(pdfListView: self.pdfListView!)

// Set the CAnnotationManage object to manage the currently selected annotations
annotationManage.setAnnotStyle(from: pdfListView.activeAnnotations)

// Set the CAnnotationManage object to manage the default annotations
annotationManage.setAnnotStyle(from: pdfListView.annotationMode)

// Set the CAnnotationManage object to adjust the properties of selected annotations
annotationManage.refreshPage(with: annotStyle.annotations)

// CPDFAnnotationToolbar: Initialize a CAnnotationManage object — annotationManage
// annotationManage: Manage the model data of annotation properties
let annotationBar = CPDFAnnotationToolBar.init(annotationManage: annotationManage)

// Initialize the CAnnotationManage object
CAnnotationManage *annotationManage = [[CAnnotationManage alloc] initWithPDFView:pdfListView];

// Set the CAnnotationManage object to manage the currently selected annotations
[annotManage setAnnotStyleFromAnnotations:pdfListView.activeAnnotations];

// Set the CAnnotationManage object to manage the default annotations
[annotManage setAnnotStyleFromMode:pdfListView.annotationMode];

// Set the CAnnotationManage object to adjust the properties of selected annotations
[annotManage refreshPageWithAnnotations:annotStyle.annotations];

// CPDFAnnotationToolbar: Initialize a CAnnotationManage object — annotationManage
// annotationManage: Manage the model data of annotation properties
CPDFAnnotationToolbar *annotationToolbar = [[CPDFAnnotationToolbar alloc] initAnnotationManage:annotationManage];

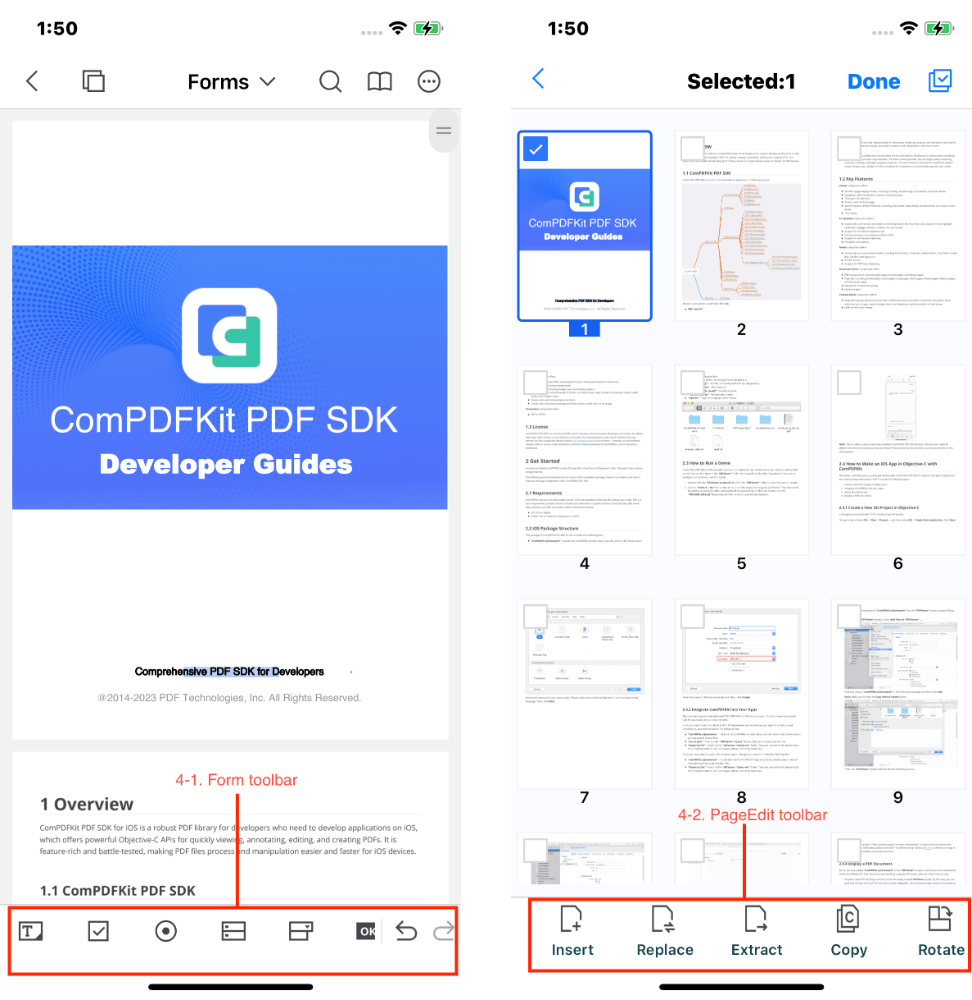

Part 4:

The left image above shows the main UI components associated with the API of Forms. The right image above shows the main UI components associated with the DocsEditor API. See the following details of the connection between UI components and APIs.

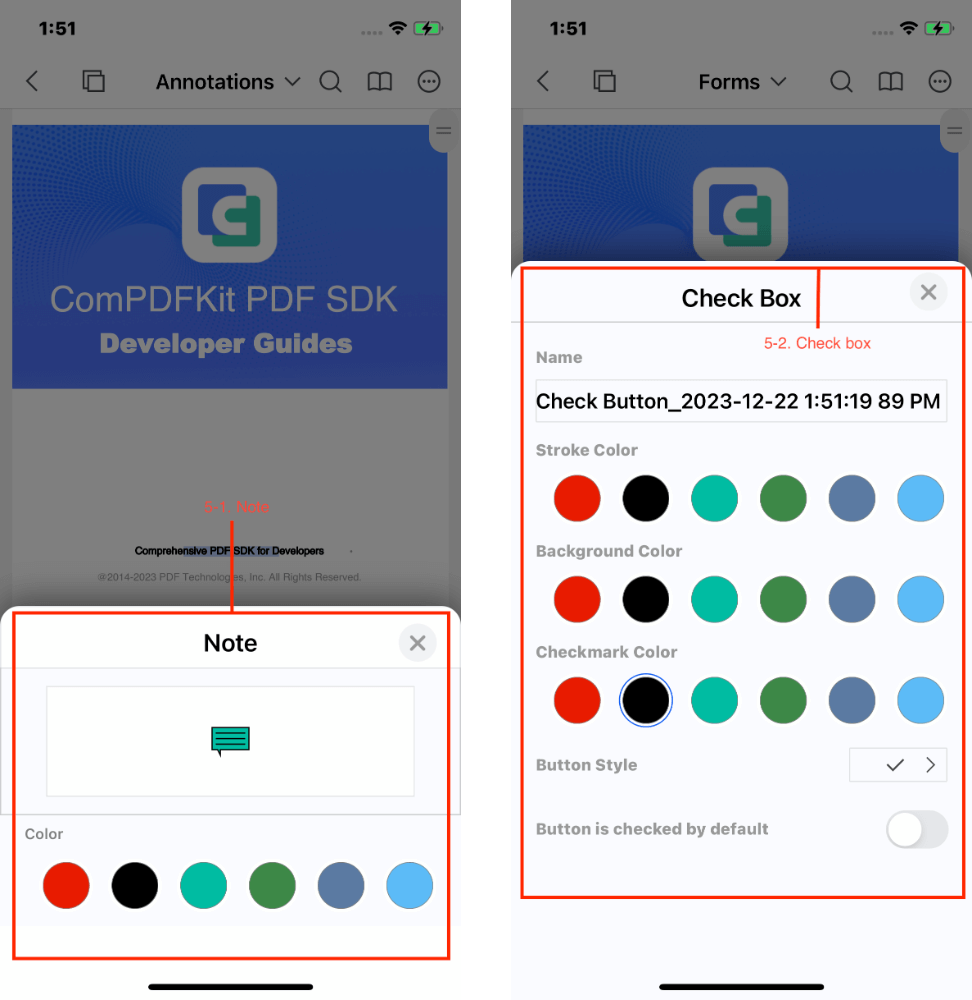

Part 5:

The left image above shows the main UI components associated with the CPDFNoteViewController API. The right image above shows the main UI components associated with the CPDFFormCheckBoxViewController API. See the following details of the connection between UI components and APIs.

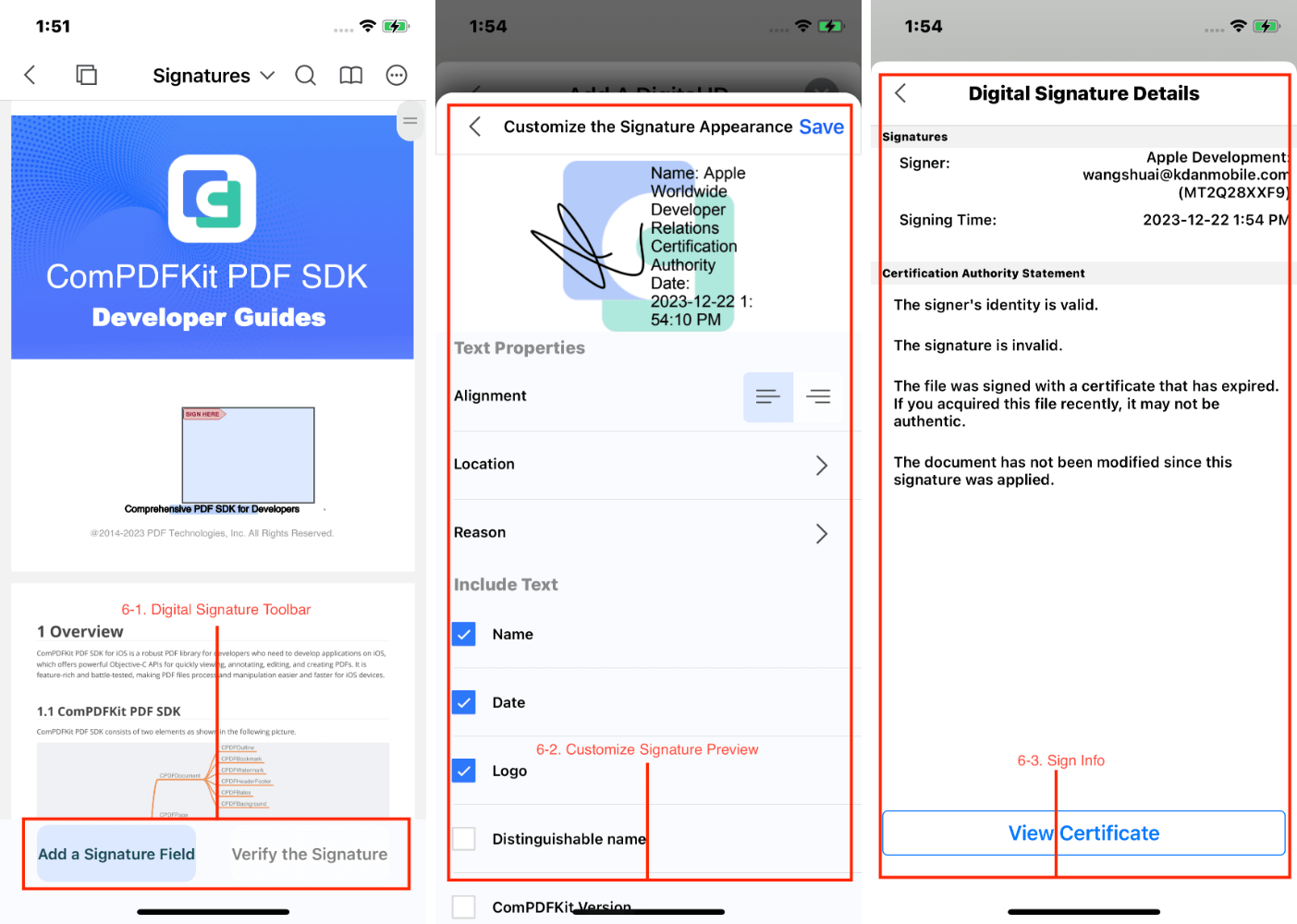

Part 6:

The picture above shows the UI components associated with the API of Digital Signature. The following table shows the details of the connection between UI components and APIs.

How to Use the CPDFListView Class ​

CPDFListView is a subclass of CPDFView that includes operations for previewing, annotating, form filling, and content editing.

1. Feature Mode Switching: ToolModel

   To switch to a different feature mode, simply set the corresponding feature mode by CPDFListView::toolModel. Then, the CPDFListView will a display different UI. The table below shows the processing you can do with annotations and forms in the corresponding feature mode.

   CToolModel	Description
   CToolModelViewer	- Support selecting and copying text. - Support filling out and signing forms. - Do not support adding, selecting, moving, deleting annotations, and editing annotation properties. - Do not support adding, selecting, moving, deleting form fields, and editing form properties.
   CToolModelEdit	- Do not support adding, selecting, moving, deleting annotations, and editing annotation properties. - Do not support form filling. - Do not support adding, selecting, moving, deleting form fields, and editing form properties.
   CToolModelAnnotation	- Support selecting and copying text. - Support adding, selecting, moving, deleting annotations, and editing annotation properties. - Do not support form filling. - Do not support adding, selecting, moving, deleting form fields, and editing form properties.
   CToolModelForm	- Support adding, selecting, moving, deleting form fields, and editing form properties. - Do not support selecting and copying text. - Do not support adding, selecting, moving, deleting annotations, and editing annotation properties. - Do not support form filling.
   CToolModelPageEdit	- Do not support editing annotations and forms.

2. Adding Annotation or Form Mode: CPDFViewAnnotationMode

When entering annotation mode or form mode, simply set the corresponding annotation mode (The form is a kind of annotation) in CPDFListView::annotationMode to create specified annotations and forms in CPDFListView. The following table shows what the value is represented.

Note:

• Do not support scrolling the PDF CPDFListView after selecting an annotation type or selecting an annotation.

• CPDFViewAnnotationModePencilDrawing mode is only supported on iOS 13.0 or higher devices.

3. Undo and Redo the Processing of Annotations and Forms

The undo and redo operations of forms and CPDFListView's annotations, these operations actually involve observing the annotation properties using KVO. When initializing CPDFListView, simply call CPDFListView::registerAsObserver, and the NSUndoManager object will use the keysForValuesToObserveForUndo method to observe the relevant properties of the existing annotations and forms, as well as newly added annotations and forms.

func startObservingNotes(newNotes: [CPDFAnnotation]) {
        if self.notes == nil {
            self.notes = []
        }
        for note in newNotes {
            if self.notes?.contains(note) == false {
                self.notes?.append(note)
            }
            let keys: Set<String> = note.keysForValuesToObserveForUndo()
            for key in keys {
                note.addObserver(self, forKeyPath: key, options: [.new, .old], context: &CPDFAnnotationPropertiesObservationContext)
            }
 }

- (void)startObservingNotes:(NSArray *)newNotes {
    if (!self.notes) {
        self.notes = [NSMutableArray array];
    }
    for (CPDFAnnotation *note in newNotes) {
        if (![self.notes containsObject:note]) {
            [self.notes addObject:note];
        }
        for (NSString *key in [note keysForValuesToObserveForUndo]) {
            [note addObserver:self forKeyPath:key options:(NSKeyValueObservingOptionNew | NSKeyValueObservingOptionOld) context:&CPDFAnnotationPropertiesObservationContext];
        }
    }
}

Note: When switching documents and removing comments or forms, be sure to remove the KVO observers for the comment's property.

The following code shows how to undo and redo edits of Annotations and forms

@objc func buttonItemClicked_undo(_ button: UIButton) {
        if self.annotManage?.pdfListView?.undoPDFManager != nil && ((self.annotManage?.pdfListView?.canUndo()) == true) {
            self.annotManage?.pdfListView?.undoPDFManager?.undo()
        }
    }

    @objc func buttonItemClicked_redo(_ button: UIButton) {
        if self.annotManage?.pdfListView?.undoPDFManager != nil && (self.annotManage?.pdfListView?.canRedo()) == true {
            self.annotManage?.pdfListView?.undoPDFManager?.redo()
        }
    }

- (void)buttonItemClicked_undo:(UIButton *)button {
    if(self.annotManage.pdfListView.undoPDFManager && [self.annotManage.pdfListView canUndo]) {
        [self.annotManage.pdfListView.undoPDFManager undo];
    }
}

- (void)buttonItemClicked_redo:(UIButton *)button {
    if(self.annotManage.pdfListView.undoPDFManager && [self.annotManage.pdfListView canRedo]) {
        [self.annotManage.pdfListView.undoPDFManager redo];
    }
}

4. Implementing the Delegate Method

About Implementing the delegate method, refer to the following method in the "CPDFViewController" file.

@optional

// Options of the context menu
    @objc optional func PDFListView(_ pdfListView: CPDFListView, customizeMenuItems menuItems: [UIMenuItem], forPage page: CPDFPage, forPagePoint pagePoint: CGPoint) -> [UIMenuItem]

// Click on a blank area
    @objc optional func PDFListViewPerformTouchEnded(_ pdfListView: CPDFListView)

// Switch feature modes
    @objc optional func PDFListViewChangedToolMode(_ pdfListView: CPDFListView, forToolMode toolMode: Int)

// Switch annotation types
    @objc optional func PDFListViewChangedToolMode(_ pdfListView: CPDFListView, forToolMode toolMode: Int)

// Annotations: Changes occur when selecting an annotation
    @objc optional func PDFListViewChangeatioActiveAnnotations(_ pdfListView: CPDFListView, forActiveAnnotations annotations: [CPDFAnnotation])

// Annotations: Changes occur
    @objc optional func PDFListViewAnnotationsOperationChange(_ pdfListView: CPDFListView)

// Editing annotations
    @objc optional func PDFListViewEditNote(_ pdfListView: CPDFListView, forAnnotation annotation: CPDFAnnotation)

// Set the properties of annotations
    @objc optional func PDFListViewEditProperties(_ pdfListView: CPDFListView, forAnnotation annotation: CPDFAnnotation)

// Play sound annotation
    @objc optional func PDFListViewPerformPlay(_ pdfView: CPDFListView, forAnnotation annotation: CPDFSoundAnnotation)

// Cancle the adding of sound annotations
    @objc optional func PDFListViewPerformCancelMedia(_ pdfView: CPDFListView, atPoint point: CGPoint, forPage page: CPDFPage)

// Sound annotations: Start to record
    @objc optional func PDFListViewPerformRecordMedia(_ pdfView: CPDFListView, atPoint point: CGPoint, forPage page: CPDFPage)

// Sound annotations: If it's recording
    @objc optional func PDFListViewerTouchEndedIsAudioRecordMedia(_ pdfListView: CPDFListView) -> Bool

// Add Stamp annotation
    @objc optional func PDFListViewPerformAddStamp(_ pdfView: CPDFListView, atPoint point: CGPoint, forPage page: CPDFPage)

// Add Image annotation
    @objc optional func PDFListViewPerformAddImage(_ pdfView: CPDFListView, atPoint point: CGPoint, forPage page: CPDFPage)

// Signature widget add signature
    @objc optional func PDFListViewPerformSignatureWidget(_ pdfView: CPDFListView, forAnnotation annotation: CPDFSignatureWidgetAnnotation)

// Set properties for text area
    @objc optional func PDFListViewContentEditProperty(_ pdfListView: CPDFListView, point: CGPoint)

@optional

// Options of the context menu
- (NSArray<UIMenuItem *> *)PDFListView:(CPDFListView *)pdfListView customizeMenuItems:(NSArray *)MenuItems forPage:(CPDFPage *)page forPagePoint:(CGPoint)pagePoint;

// Click on a blank area
- (void)PDFListViewPerformTouchEnded:(CPDFListView *)pdfListView;

// Switch feature modes
- (void)PDFListViewChangedToolMode:(CPDFListView *)pdfListView forToolMode:(CToolModel)toolMode;

// Switch annotation types
- (void)PDFListViewChangedAnnotationType:(CPDFListView *)pdfListView forAnnotationMode:(CPDFViewAnnotationMode)annotationMode;

// Annotations: Changes occur when selecting an annotation
- (void)PDFListViewChangeatioActiveAnnotations:(CPDFListView *)pdfListView forActiveAnnotations:(NSArray<CPDFAnnotation *> *)annotations;

// Annotations: Changes occur
- (void)PDFListViewAnnotationsOperationChange:(CPDFListView *)pdfListView;

// Editing annotations
- (void)PDFListViewEditNote:(CPDFListView *)pdfListView forAnnotation:(CPDFAnnotation *)annotation;

// Set the properties of annotations
- (void)PDFListViewEditProperties:(CPDFListView *)pdfListView forAnnotation:(CPDFAnnotation *)annotation;

// Play sound annotation
- (void)PDFListViewPerformPlay:(CPDFListView *)pdfView forAnnotation:(CPDFSoundAnnotation *)annotation;

// Cancle the adding of sound annotations
- (void)PDFListViewPerformCancelMedia:(CPDFListView *)pdfView atPoint:(CGPoint)point forPage:(CPDFPage *)page;

// Sound annotations: Start to record
- (void)PDFListViewPerformRecordMedia:(CPDFListView *)pdfView atPoint:(CGPoint)point forPage:(CPDFPage *)page;

// Sound annotations: If it's recording
- (BOOL)PDFListViewerTouchEndedIsAudioRecordMedia:(CPDFListView *)pdfListView;

// Add Stamp annotation
- (void)PDFListViewPerformAddStamp:(CPDFListView *)pdfView atPoint:(CGPoint)point forPage:(CPDFPage *)page;

// Add Image annotation
- (void)PDFListViewPerformAddImage:(CPDFListView *)pdfView atPoint:(CGPoint)point forPage:(CPDFPage *)page;

// Signature widget add signature
- (void)PDFListViewPerformSignatureWidget:(CPDFListView *)pdfView forAnnotation:(CPDFSignatureWidgetAnnotation *)annotation;

// Set properties for text area
- (void)PDFListViewContentEditProperty:(CPDFListView *)pdfListView point:(CGPoint)point;

**Note: ** If you need to toggle or deselect annotations, you need to call CPDFListView::updateActiveAnnotations in order for CPDFListView::PDFListViewChangeatioActiveAnnotations: forActiveAnnotations: to respond.

SwiftUI ​

Since version 10.1 for iOS, ComPDFKit exposes specific APIs to use ComPDFKit with SwiftUI out of the box. This makes dealing with ComPDFKit in a SwiftUI app easier, and it doesn’t require you to wrap CPDFViewController.swift yourself if you want to go the SwiftUI route.

1. Import resource file，"ComPDFKit_Tools" for iOS sample projects comes with a default UI design, including the basic UI for the app and the feature modules UI, which are implemented using ComPDFKit PDF SDK and are shipped. Also included is a CPDFViewController view controller that contains ready-to-use UI module implementations.

2. Add PDF documents to your application by dragging and dropping them into your project. In the dialog that displays, select Finish to accept the default integration options. You can use the documents in the "TestFile" folder as an example.

3. Bridging CPDFSwiftViewController to SwiftUI

First, declare the CPDFSwiftViewController struct — which conforms to the UIViewControllerRepresentable protocol — so that you can bridge from UIKit to SwiftUI.

struct CPDFSwiftViewController: UIViewControllerRepresentable {
    @Environment(\.presentationMode) var presentationMode: Binding<PresentationMode>

    class Coordinator: NSObject,CPDFViewBaseControllerDelete {
        var myview: CPDFSwiftViewController
        init(_ myview: CPDFSwiftViewController) {
            self.myview = myview
        }

        // MARK: - CPDFViewBaseControllerDelete
        func PDFViewBaseControllerDissmiss(_ baseControllerDelete: CPDFViewBaseController) {
            baseControllerDelete.dismiss(animated: true)
        }

    }

    func makeCoordinator() -> Coordinator {
        Coordinator(self)
    }

    func makeUIViewController(context: Context) -> CNavigationController {

        CPDFKit.setLicenseKey("", secret: "")

        let filePath = Bundle.main.path(forResource: "developer_guide_ios", ofType: "pdf")
        let documentFolder = NSHomeDirectory().appending("/Documents/Samples")

        if !FileManager.default.fileExists(atPath: documentFolder) {
            try? FileManager.default.createDirectory(atPath: documentFolder, withIntermediateDirectories: true, attributes: nil)
        }


        let documentURL = URL(fileURLWithPath: documentFolder).appendingPathComponent((filePath as NSString?)?.lastPathComponent ?? "")

        if !FileManager.default.fileExists(atPath: documentURL.path) {
            try? FileManager.default.copyItem(at: URL(fileURLWithPath: filePath ?? ""), to: documentURL)
        }

        let configuration = CPDFConfiguration()

        let thumbnail = CNavBarButtonItem(viewLeftBarButtonItem: .thumbnail)
        let back = CNavBarButtonItem(viewLeftBarButtonItem: .back)
        let search = CNavBarButtonItem(viewRightBarButtonItem: .search)
        let bota = CNavBarButtonItem(viewRightBarButtonItem: .bota)
        let more = CNavBarButtonItem(viewRightBarButtonItem: .more)

        configuration.showleftItems = [back, thumbnail]
        configuration.showRightItems = [search, bota, more]


        let vc = CPDFViewController(filePath: documentURL.path, password: nil, configuration: configuration)
        vc.delegate = context.coordinator;
        let navController = CNavigationController(rootViewController: vc)

        return navController
    }

    func updateUIViewController(_ uiViewController: CNavigationController, context: UIViewControllerRepresentableContext<CPDFSwiftViewController>) {
        // Update the view controller.
    }
}

4. Using CPDFSwiftViewController in SwiftUI

And finally, use CPDFSwiftViewController in your SwiftUI content view:

struct ContentView: View {
    @State var isPresented: Bool = false

    var body: some View {
        VStack {
            Image(systemName: "globe")
                .imageScale(.large)
                .foregroundColor(.accentColor)
            Text("Hello, world!")

                .toolbar {

                    ToolbarItem(placement: .bottomBar) {
                        Button("Click to open the sample PDF") {
                            isPresented = true
                        }
                    }
                }
                .sheet(isPresented: $isPresented) {
                    CPDFSwiftViewController()
                }

        }
        .padding()
    }
}

struct ContentView_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}

Learn More ​

1. How to Handle PDF Document Loading

   To handle PDF document loading, refer to the following method in the "CPDFViewBaseController.m" file.

swiftobjective-cobjective-c

swift

     func reloadDocument(withFilePath filePath: String, password: String?, completion: @escaping (Bool) -> Void)

1

objective-c

- (void)reloadDocumentWithFilePath:(NSString *)filePath password:(nullable NSString *)password completion:(void (^)(BOOL result))completion;

1

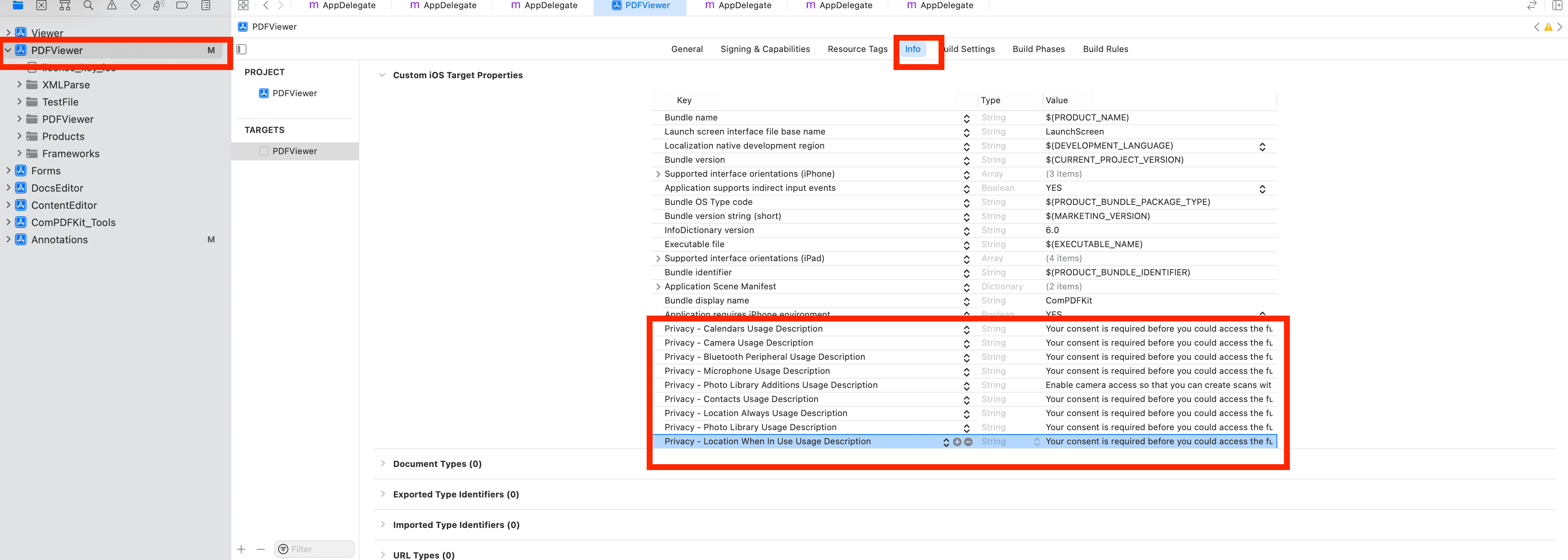

2. To protect user privacy, before accessing the sensitive privacy data, you need to find the "*Info*" configuration in your iOS 10.0 or higher iOS project and configure the relevant privacy terms as shown in the following picture.

objective-c

<key>NSCameraUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

<key>NSMicrophoneUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

<key>NSPhotoLibraryAddUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

<key>NSPhotoLibraryUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

1
2
3
4
5
6
7
8
9
10
11
